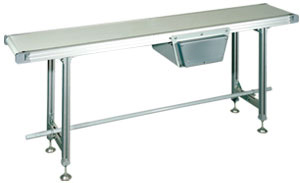

Features :
|
| • |
Strong and Sleek frame |
| • |
Perform excellently with higher productivity |
| • |
Lower down time |
| • |
Lower maintenance cost |
| • |
Easy method of nut insertion |
| • |
Application for E&E assembly line, Plastic injection moulding, food industry |
|
|
|
|
| |

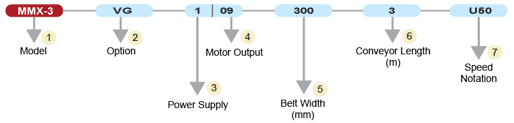

Model Selection |
|
|
| |
 |
|
|
| |
Specification Table |
|
|
| |
| 1 |
|
Model |
|
|
MMX-3 Belt Conveyor |
| 2 |
|
Option |
|
CF |
|
Slanting |
| |
|
|
VG |
|
V-Guide |
| |
|
|
KE |
|
Knife Edge |
| |
|
|
SR |
|
Small Roller |
| 3 |
|
Power Supply |
1: AC 110V (1Ph)*, 2: AC 240 V (1Ph) |
| 4 |
|
Motor Ouput |
|
| 5 |
|
Belt Width (mm) |
100, 200, 250 ~ 600 |
| 6 |
|
Conveyor Length (m) |
0.8, 1.0, 1.5 ~ 12.0 |
| 7 |
|
Speed Notation |
U: Variable Speed |
| |
|
Conveyor Width (mm) |
| BW + 70 |
Drive Unit: BW + 125 |
|
| |
|
Frame Height (mm) |
|
| |
|
Belt Speed |
Refer to Speed and Notation Table |
| |
|
Allowable Load |
Refer to Details Selection Reference Table |
| |
|
Belt Type |
Anti-Static Polyurethane, PVC,
Food Grade Belt |
|
|
| 7 |
Speed and Notation Table |
|
Variable
Notation |
|
Speed
(m/min) |
| U-12.5 |
9.5 ~ 23.8 |
| U-25 |
4.7 ~ 11.9 |
| U-50 |
2.3 ~ 5.9 |
| U-100 |
1.1 ~ 2.9 |
| Note : |
Motor sprocket RS35 |
| |
X 16T |
| : |
Drive pulley sprocket RS35 X 17T
|
|
|
|
|
|
| |

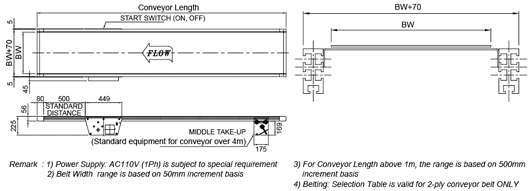

MMX-3 Dimension Drawing |
|
|
|
| |
 |
|
|
| |
^ top |
|
|
| |
|
|
|
| |

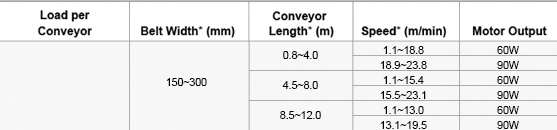

Details Selection Reference Table |
|
|
 |
|
 |
|
 |
|
 |
|
 |
|
 |
|
 |
|
 |
|
 |
|
| |
Remark:
1) Belt Width range is based on 50mm increment basis
2) For Conveyor Length above 1m, the range is based on 500mm increment basis
3) Belting: Selection Table is valid for 2-ply conveyor belt ONLY
4) Speed: Refer to Notation Table for the Selection of Motor Ratio |
|
|
| |
^ top |
|
|
| |
|
|
|
| |
MMX-3: Design Option |
|
|
| |
 |
|
|
Knife Edge
Enable smaller work loads to move down the conveyor smoothly and without damage. A standard knife edge belt is used (green or white).
Maximum load & speed varies according to the capacity of the conveyor. |
|
V-Guide
"V" cleat design prevent belt from wondering. Ideally for reversible direction requirement. Max load is 50% to the standard Load. |
|
|
 |
|
 |
Slanting
Allow to convey material from lower to higher level, Angle of elavation can be altered from between 0 to 30 degree. Max load is 50% to the standard Load. |
|
|
Small Roller
Small Rollers are used to ensure smoother conveying of item.
Easy installation or removal, and it can be done by tighthening the belt at the end ditch. |
|
|
|
|
| |
^ top |
|
|
| |
|
|
|
| |

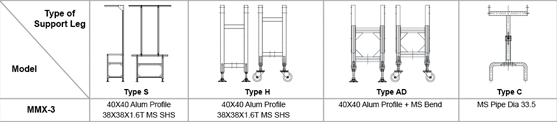

MMX-3: Stand Option |
|
|
|
 |
|
| |
^ top |
|
|
| |
|
|
|
| |
Belt Series: Side Guide |
|
|
|
 |
|
| |
^ top |
|
|
| |
|
|
|
| |

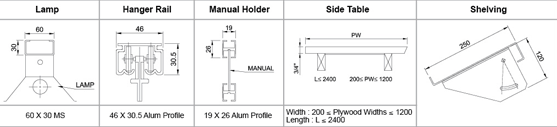

Belt Series: Accessory |
|
|
|
 |
|
| |
^ top |
|
|
| |
|
|
|
|
